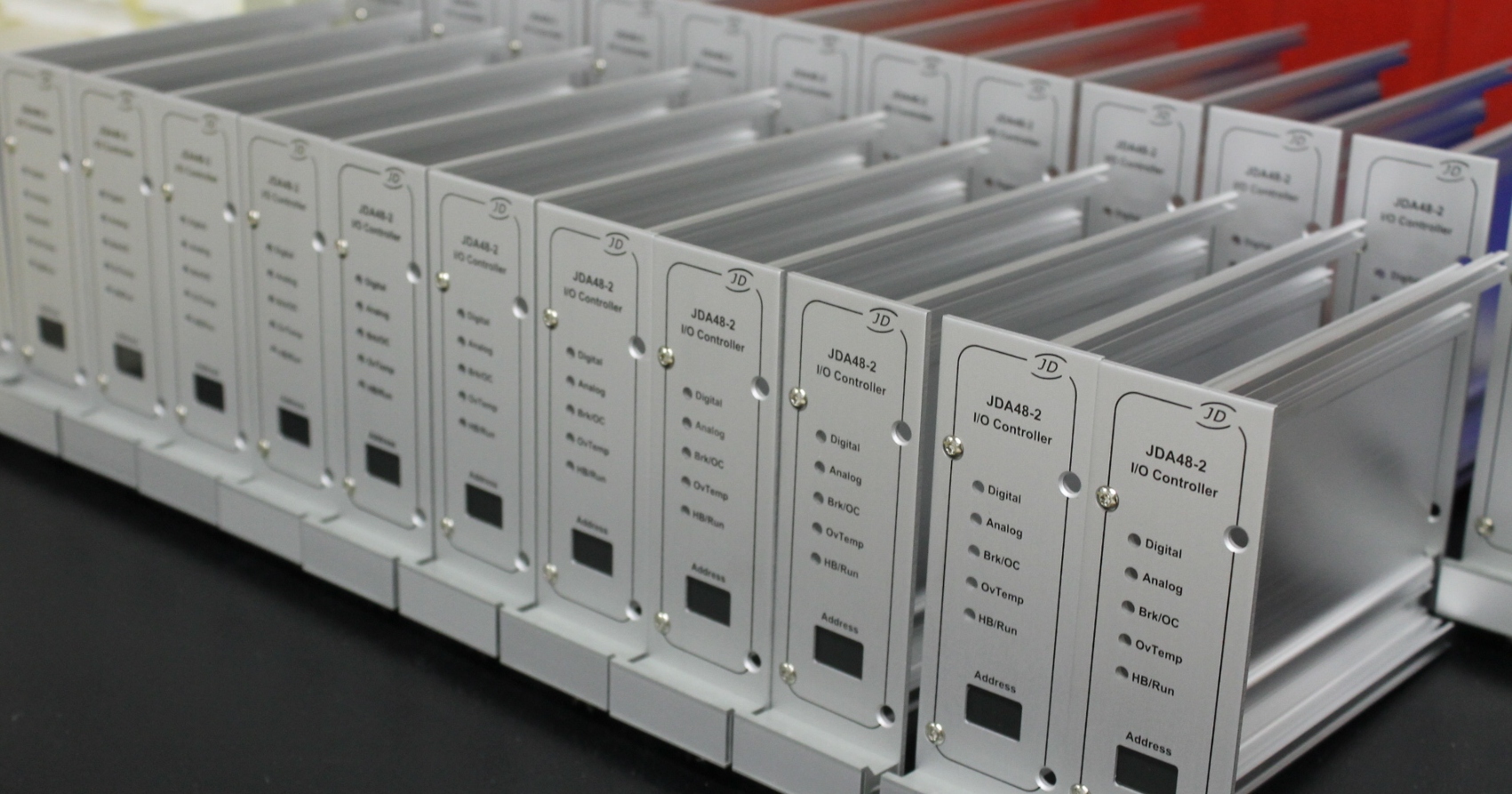

impressions of production (Zoom)

3D viewing

JDA48-2 3D-PDF

Problems with Firefox, use MS IE

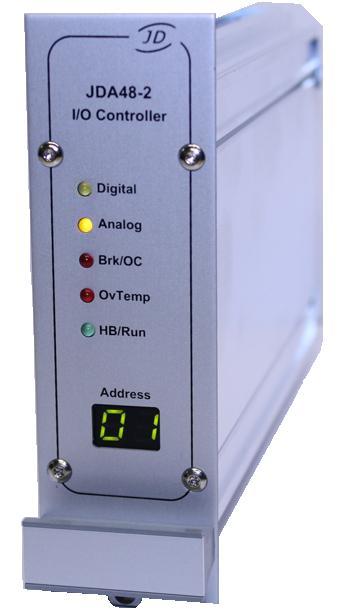

JDA48-2

19" Plug-in Controller

This controller enables the controlling of 48 digital or analog outputs. It is compatible with the VIB Type MFC-48 or with MFC-148 and can be used in existing systems without any adaption. Due to the specific structure the digital 19" Plug-in controller doesn't need an additional ventilator. The analog controller needs an extra ventilation.

All outputs are turned off, when the temperature of the controller exceeds 75°C. All outputs are short-circuit protected. The controller signalizes error conditions as well as the running data transfer.

Types:

JDA48-2-1   48 digital outputs 24VDC/240mA with broken-wire/over-current detection
JDA48-2-2   48 analog outputs 0-20mA with broken-wire detection
